mizoGrad

A module for extremely fast gradient-based (stochastic) optimization.

Author

Affiliation

Mazen Alamir

CNRS, University of Grenoble Alpes

Published

July 21, 2026

Keywords

Optimization, First order methods, Gradient-based, Box Constraints, Machine Learning, Python

Installation

This package can be installed using one of the following instructions

uv add mizoGrad
pip install mizoGrad

Problem Statement

mizoGrad is a python module that implements Gradient-Based solution to the following box-constrained optimization problems:

\[ \min_{x\in [\underline x, \bar x]}f(x, {\scriptsize \texttt{**kwargs}}) \tag{1}\]

where \(f\) is a differentiable map, \(x\) is the decision variable while \(\texttt{**kwargs}\) is a list of keywords arguments that is necessary to define the cost function.

Deterministic version

In its deterministic version, the dictionary of parameters kwargs is given and a deterministic cost is defined accordingly.

Stochastic version

In the stochastic version, the fields associated to the key used in the instantiation of the solver is uncertain and hence, different formulation of a constrained stochastic optimization problems can be defined, namely:

Expectation-related: where the cost function is the expectation of the cost
Value-at-Risk (VaR): where the cost function to be minimized is defined as the \(\alpha\)-quantile of the cost function \(f(x,p)\).
Conditional-Value-at-Risk (CVaR): where the cost to be minimized represents the expectation of values that go beyonf the \(\alpha\)-quantile.

Deterministic version is used in the stochastic version

It is important to notice that the stochastic version of the algorithm leverages the acceleration features included in the determinisitc approach. This means that understanding the deterministic version’s parameters and options is mandatory for a better use of the stochastic version.

In the next sections, the deterministiv version is first introduced before its use in the stochastic version is discussed.

The `GradOptimizer` class

This class implements the deterministic version and it is then used also in the stochastic version. The following section describes the main features of the deterministic algorithm that explains its high performance compared to other gradient-based algorithms.

Algorithm features

The Gradient-based algorithm used in the mizoGrad module is fully described in the paper. This section just highlights some main features that distinguishes it from existing alternatives.

The algorithm uses three main mechanisms that makes it outstanding, namely:

The use of line search along the gradient line which is defined through a specific adaptable grid.
The adaptation of the grid is based on a trust region mechanism
Unlike the standard implementation of the Nesterov acceleration step, mizoGrad uses another line search along the acceleration path. Moreover, this line search allow for negative steps.

This is schematically shown in the following Figures:

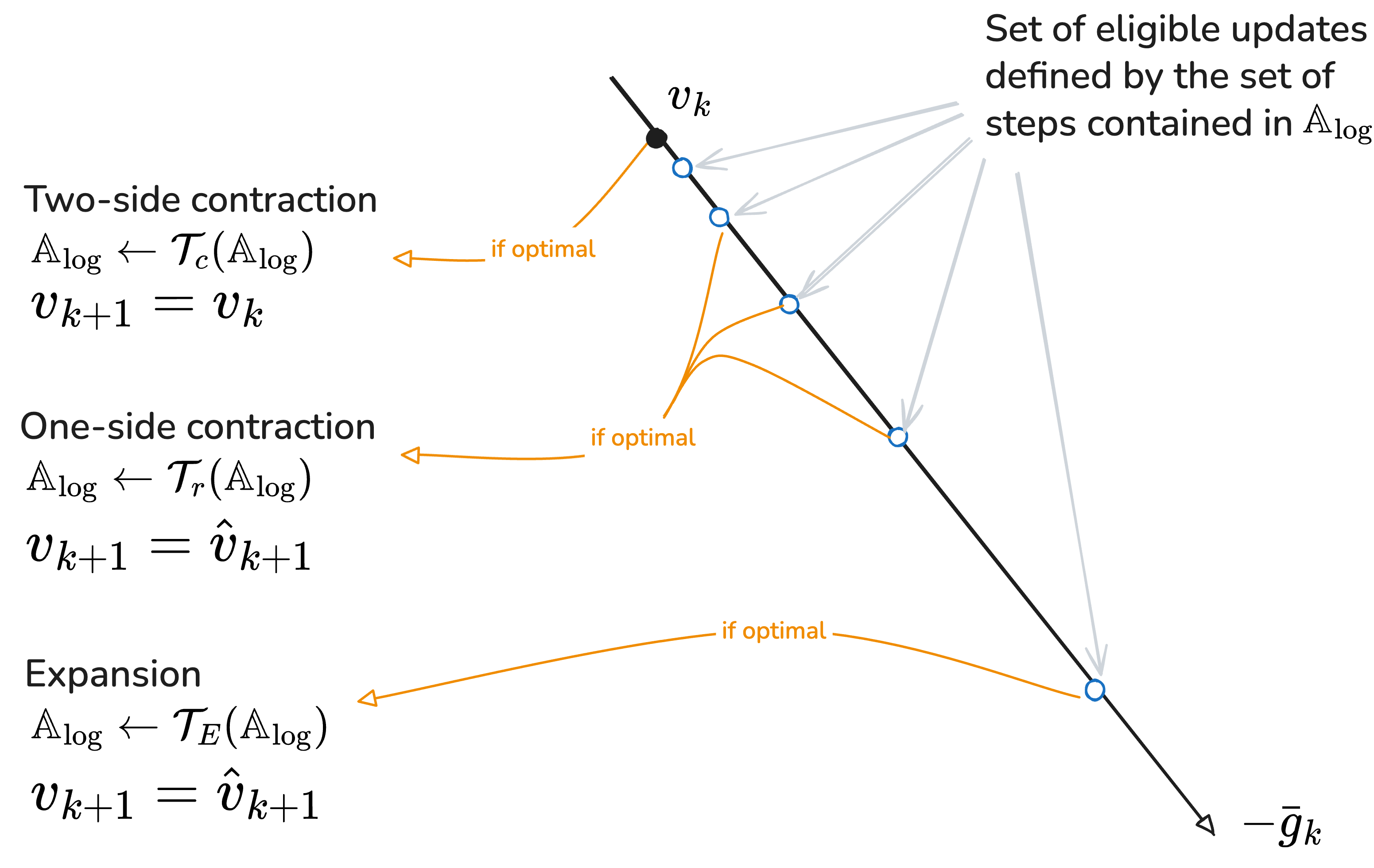

The gradient step

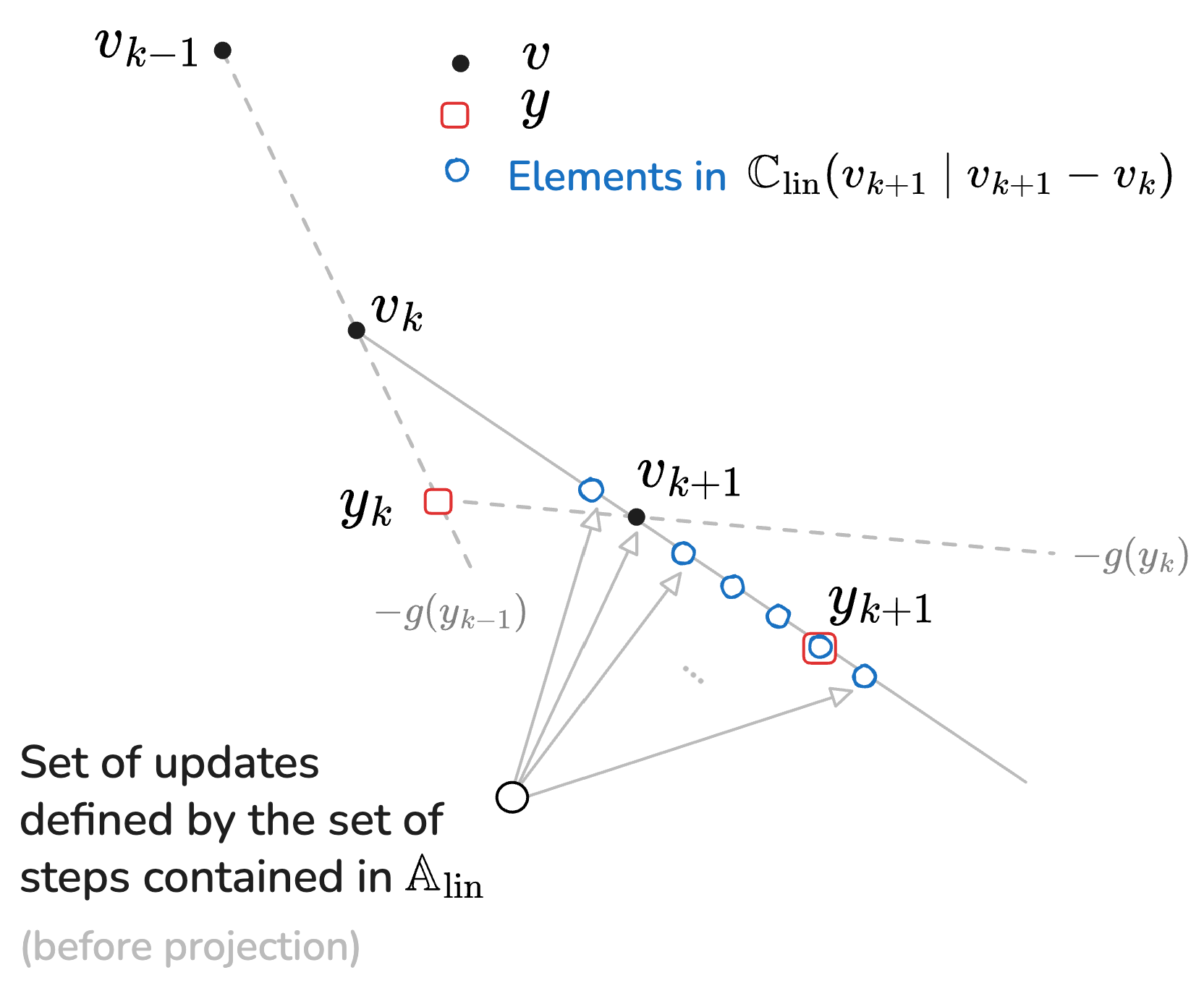

The acceleration step

Provable convergence

Despite the use of both line search on the gradient direction and acceleration step, the algorithm is proved to asymptotically converges to a point that meets the KKT optimality condition (see the proof in the reference paper).

Syntax of use

In order to use the module, the user need to provide three **mandatory arguments*, namely:

The python function for the cost function
The python function for its gradient
The number of decision variables.

All the other parameters corresponds to some default values. In particular, if non xmin and xmax arguments are provided, the problem is considered to be unconstrained.

The following section provides the full list of input arguments

Input arguments

The following list of arguments are used in the instantiation of GradOptimizer class. An instance of this class possesses a solve method that enables to solve the above mentioned problem Equation 1.

Order of the decision variable in f and g

Please notice that it is mandatory that decision variable appears as the first argument in the formal definition of the cost function.

Input arguments for the `instantiation` of the `GradOptimizer` class.
Parameter	Description	Default
`f`	The python function that provides the cost function. This function might need the value of some dictionary of parameters so that the generic call is `f(x, **kwargs)` where `kwargs` is a dictionary (see the example below)	–
`g`	The python function that provides the gradient of the function. Similarly to the cost function This function might need the value of some dictionary of parameters so that the generic call is `f(x, **kwargs)` where `kwargs` is a dictionary (see the example below)	–
`nx`	The number of decision variable (dimension of `x`)	–
`xmin`	The lower bound on the vector of decition variable	`[-inf] * nx`
`xmax`	The upper bound on the vector of decition variable	`[+inf] * nx`
`ng`	The integer representing the number of adaptive grid for the line searched. As a matter of fact, the line search along the gradient line involves `ng+2` grid-points while the line search on the acceleration path uses `ng+1`. (See the reference for more details and this is so)	`5`
`alpha_min`	The initial value of the exponent of the smallest step on the gradient search, the default value means that the initial adaptable smallest step is \(10^{-8}\). Notice that this is the smallest adaptable step size but not necessarily the smallest candidate step. This is because the `eta<1/(2L)` value (see below) is always there without change.	`-8`
`alpha_max`	The initial value of the exponent of the largest step on the gradient search, the default value means that the initial adaptable largest step is \(1\). The values of the last two arguments are updated according to trust region-like mechanism	`0`
`fast_min`	The smallest step along the acceleration line (no adaptation)	`-0.2`
`fast_max`	The largest step along the acceleration line (no adaptation)	`1.0`
`rho_adapt`	The adaptation ratio for the trust region mechanism	`0.05`
`eta`	The constant extremely small step size along the gradient. This value is not updated and is supposed (for the proof of convergence) to be lower than \(1/(2L)\) where \(L\) is the Lypschiz constant of the cost function.	`1e-16`

Calling the solve method

The solve method is called on an instance of the GradOptimizer class with the following arguments

x0: The initial guess
kwargs: The dictionary needed for the cost function and the gradient
maxIter: The maximum number of allowed iterations (Default: 100)
epsG: The early stopping threshold on the norm of the gradient (Default: \(10^{-8}\))
display: Boolean for the display or not of intermediate results

Returned dictionary

The solver returns a dictionary with the following fields:

The returned dictionary by the `solve` method.
Parameter	Description
`xopt`	The optimal solution found \(\in \mathbb R^{n_x}\)
`fopt`	The corresponding optimal value of the cost function
`normG`	The norm of the gradient at the solution
`lesalpha_min`	The history of the smallest exponents during the iterations
`lesalpha_max`	The history of the largest exponents during the iterations
`traj`	The history of the cost function values during the iteration
`traj_c`	The history of the acceleration step size during the iterations

Example of use

This script gives a complete example of use of the mizoGrad module

import numpy as np
from mizoGrad import GradOptimizer
from time import time

#from SaA import GradOptimizer

np.set_printoptions(formatter={'float': lambda x: "{0:0.4f}".format(x)})

# Define the cost function and the gradient

def cost(x, a=10, b=2, m=1):

    f = np.power((x[0]-a)*x[1] + b * x[2] ** 3, 2*m)
    return f

def cost_gradient(x, a=10, b=2, m=1):
    term = 4 * np.power((x[0]-a)*x[1] + b * x[2] ** 3, 2*m-1)
    g = np.array([
        term * x[1],
        term * (x[0]-a),
        term * (3 * b * x[2] ** 2)
    ])
    return g


x0 = 2*np.array([1,1,1])

xmin = np.array([-5] * len(x0))
xmax = np.array([+5] * len(x0))

s2a = GradOptimizer(
    f=cost,
    g=cost_gradient,
    nx = 3,
    xmin=xmin,
    xmax=xmax,
    ng=5,
    alpha_min=-8,
    alpha_max=0,
    fast_min=-0.2,
    fast_max=1.0,
    rho_adapt=0.05,
    eta=1e-16,
)

# set the dictionary argument used the cost function and gradient

kwargs = dict(
    a=3,
    b=1,
    m=1,
)

# solve the problem

t1 = time()
R = s2a.solve(x0=x0,
              kwargs=kwargs,
              maxIter=20,
              epsG=1e-8,
              display=True)

cpu = time()-t1

print('solution: ', np.array(R['xopt'], dtype=float))
print('best cost : ', cost(s2a.y, **kwargs))
print('cpu = ', cpu)

which leads to the followning results:

value 9.374756801 normg=292.957 | alpha_min=-8.0 | alpha_max=-0.4
value 3.931283917 normg=31.930 | alpha_min=-8.0 | alpha_max=-0.78
value 1.109572100 normg=17.759 | alpha_min=-7.962 | alpha_max=-0.419
value 0.000013588 normg=6.499 | alpha_min=-7.922 | alpha_max=-0.04185
value 0.000000666 normg=0.066 | alpha_min=-7.922 | alpha_max=-0.4359
value 0.000000029 normg=0.015 | alpha_min=-7.922 | alpha_max=-0.8102
value 0.000000000 normg=0.003 | alpha_min=-7.922 | alpha_max=-1.166
value 0.000000000 normg=0.000 | alpha_min=-7.922 | alpha_max=-1.504
value 0.000000000 normg=0.000 | alpha_min=-7.922 | alpha_max=-1.825
value 0.000000000 normg=0.000 | alpha_min=-7.89 | alpha_max=-1.52
value 0.000000000 normg=0.000 | alpha_min=-7.89 | alpha_max=-1.838
value 0.000000000 normg=0.000 | alpha_min=-7.859 | alpha_max=-1.536
value 0.000000000 normg=0.000 | alpha_min=-7.859 | alpha_max=-1.852
solution:  [1.7020 -1.2326 -1.1696]
best cost :  8.860672896017431e-21
cpu =  0.0008881092071533203

Acceleration

Acceleration of the function and gradient call

Notice that any acceleration in the computation process of the cost function and the gradient is naturally inherited by the algorithm. Consequently, for demanding optimization-based applications (Nonlinear Model Predictive Control / Moving-Horizon Estimation), you might want to accelerate the evaluation of these function through compiled version of CasaDi.

The `StochasticGradOptimizer` class

The basic class StochasticGradOptimizer is a child class of the previous one and is described in detail in this paper. As such, all the input argument described above are also needed for this class in addition to some more arguments that controls the way the stochastic aspect of the problem is handled. This is the reason why for the sake of convenience, the dictionary containing the default values that might be used in the call can be obtained through the command:

from mizoGrad import dicGradDefault

# Load the default dictionary for the deterministic solver
dicGrad = dicGradDefault

# Update the dictionary with the mandatory values
dicGrad.update(
    dict(
        f= ...,
        g= ...,
        nx= ...,
        xmin= ...,
        xmax= ...,
        )
)

The full list of arguments for the instantiation of the StochasticGradOptimizer class are described in the following section.

Input arguments

Parameter	Type	Default	Description
`dicGradOptimizer`	dictionary	—	Dictionary representing the input arguments of the deterministic version
`key`	str	—	The key in the `kwargs` dictionary that corresponds to the stochastic variable
`realizations`	numpy array	-	The matrix of realizations of the uncertain parameters used to approximate the cost.
`nDesign`	int	`25`	The number of realizations used as pivots in the algorithm.
`alpha_criterion`	float	`95`	The quantile used in the definition of the cost functions.
`nCV`	int	`0`	The number of extra candidate to be sampled from the convex hull
`maxIterCV`	int	`0`	The number of convex-hull associated trials to improve the solution
`m`	int	`5`	The number of best solution to be retained before a convex-hull operation is attempted.
`maxIter`	int	`20`	Number of iterations of the determinisitc solver for the first instance of uncertainty.
`maxIter_low`	int	`5`	Number of iterations of the determinisitc solver for the remaining instances of uncertainty.

Once an element of the class is instantiated, it is possible to call its solve method to solve the targeted stochastic optimization problem:

The solve method of `StochasticGradOptimizer`

Here again, the stochastic optimization problem is solved by calling the solve method of the StochasticGradOptimizer class.

parameter	Type of value	Description
`x0`	ndarray	The initial guess
`kwargs`	dictionary	The dictionary of arguments used in the cost and the gradient functions
`epsG`	float	Stopping threshold on the norm of the gradient
`display`	boolean	Whether to print intermiediate results or not
`criterion`	str	one of {expectation, var, cvar} defining the criterion to be minimized

Returned solution

The solve method of the StochasticGradOptimizer class returns a dictionary with the following keys and values:

Dictionary key	Type of value	Description
`xopt`	ndarray	The best solution found
`fopt`	float	The corresponding best cost function value
`cpu`	float	The computation time of the stochastic algorithm.

Example of use

import numpy as np
from mizoGrad import StochasticGradOptimizer, dicGradDefault
from time import time

# Define the problem, cost, grandient and uncertainty generator.
xc = np.array([0.0, 0.25, 0.5, 0.75, 1.25, 1.5])

phix = lambda x: np.sum((x - xc) ** 2)
phip = lambda p: np.sum((p-1)**2)
gradPhix = lambda x: 2*(x - xc)

# The cost function
def cost(x, p, lam, rho):
    x = np.array(x)
    p = np.array(p)
    v = phix(x) + rho * phip(p) * np.exp(-lam * phix(x))
    return v

# The gradient of the cost function
def grad(x, p, lam, rho):
    x = np.array(x)
    p = np.array(p)
    return (1-lam * rho * phip(p)* np.exp(-lam * phix(x))) * gradPhix(x)


# Function that generates a list of random realizations
def generate_p_samples(nSamples=1, pnom=(1, 1), sig=0):
    P = np.array([pnom + sig * np.random.randn(2) for _ in range(nSamples)])
    return P

# Define the algorithm parameters

nx = 6
x_upper = 5
sigma0 = 0.35
kwargs = dict(lam=0.5, rho=50)
N = 1000 # used in the design
nTest = 100000
nDesign = 50
# Choice of the criterion
# possible values are ['expectation', 'var', 'cvar']
criterion = 'cvar'

xmin = np.array([-x_upper] * nx)
xmax = np.array([x_upper] * nx)

Ptest = generate_p_samples(nSamples=nTest, sig=sigma0)

for sigma_train in [0, 0.35]:

    x0 = xmin + np.random.rand(nx) * (xmax - xmin)
    realizations = generate_p_samples(nSamples=N, sig=sigma_train)


    # Define the dictionary for GradOptimizer
    # Download the dafault arguments then update with mandatory ones
    dicGrad = dicGradDefault
    dicGrad.update(
        dict(
            f=cost,
            g=grad,
            nx=nx,
            xmin=xmin,
            xmax=xmax,
            )
    )

    sgo = StochasticGradOptimizer(dicGradOptimizer=dicGrad,
                                  realizations=realizations,
                                  key='p',
                                  nDesign=nDesign,
                                  )

    t0 = time()
    dR = sgo.solve(x0,
                   kwargs,
                   display=False,
                   epsG=1e-10,
                   criterion=criterion)

    cpu = time() - t0
    print(f'Results when learning using sigma = {sigma_train}')
    print(f'achieved {criterion} cost on working data = {dR["fopt"]:2.3f}  | cpu = {cpu:2.2f}')
    perf = sgo.global_cost(dR['xopt'], kwargs, Ptest, criterion=criterion)
    print(f'achieved cost on test data = {perf}')
    print('-----')

This results in the following output

Results when learning using sigma = 0
achieved cvar cost on working data = 0.000  | cpu = 0.49
achieved cost on test data = 48.49123245004931
-----
Results when learning using sigma = 0.35
achieved cvar cost on working data = 8.348  | cpu = 0.51
achieved cost on test data = 8.377288795786622

Where it can be seen that solving the problem using the most expected value of the parameters lead to a quite risky solution given the disperstion of the parameters.

Citing mizoGrad (Deterministic Version)

@misc{alamir2026_det_nonlinearmodelpredictivecontrol,
      title={A Nonlinear Model Predictive Control Perspective on Gradient-Based Optimization: A New Efficient, Parameter-Free and Provably Stable Algorithm},
      author={Mazen Alamir},
      year={2026},
      eprint={2607.14600},
      archivePrefix={arXiv},
      primaryClass={cs.CE},
      url={https://arxiv.org/html/2607.14600},
}
}

Citing mizoGrad (Stochastic Version)

@misc{alamir2026_stoch_nonlinearmodelpredictivecontrol,
      title={A Unified Efficient Gradient-Based Heuristic For Box-Constrained Expectation-Related and Risk-Averse Stochastic Optimization Problems},
      author={Mazen Alamir},
      year={2026},
      eprint={2609.07427},
      archivePrefix={arXiv},
      primaryClass={cs.CE},
      url={http://arxiv.org/abs/2609.07427},
}
}

Note

The above references contain a detailed description of the algorithm together with an extensive comparison with the best available alternatives. It also shows an example of application for very fast NMPC feedback implementation.

Installation

Problem Statement

Deterministic version

Stochastic version

The GradOptimizer class

Algorithm features

The gradient step

The acceleration step

Syntax of use

Input arguments

Calling the solve method

Returned dictionary

Example of use

Acceleration

The StochasticGradOptimizer class

Input arguments

The solve method of StochasticGradOptimizer

Returned solution

Example of use

Citing mizoGrad (Deterministic Version)

Citing mizoGrad (Stochastic Version)

The `GradOptimizer` class

The `StochasticGradOptimizer` class

The solve method of `StochasticGradOptimizer`
